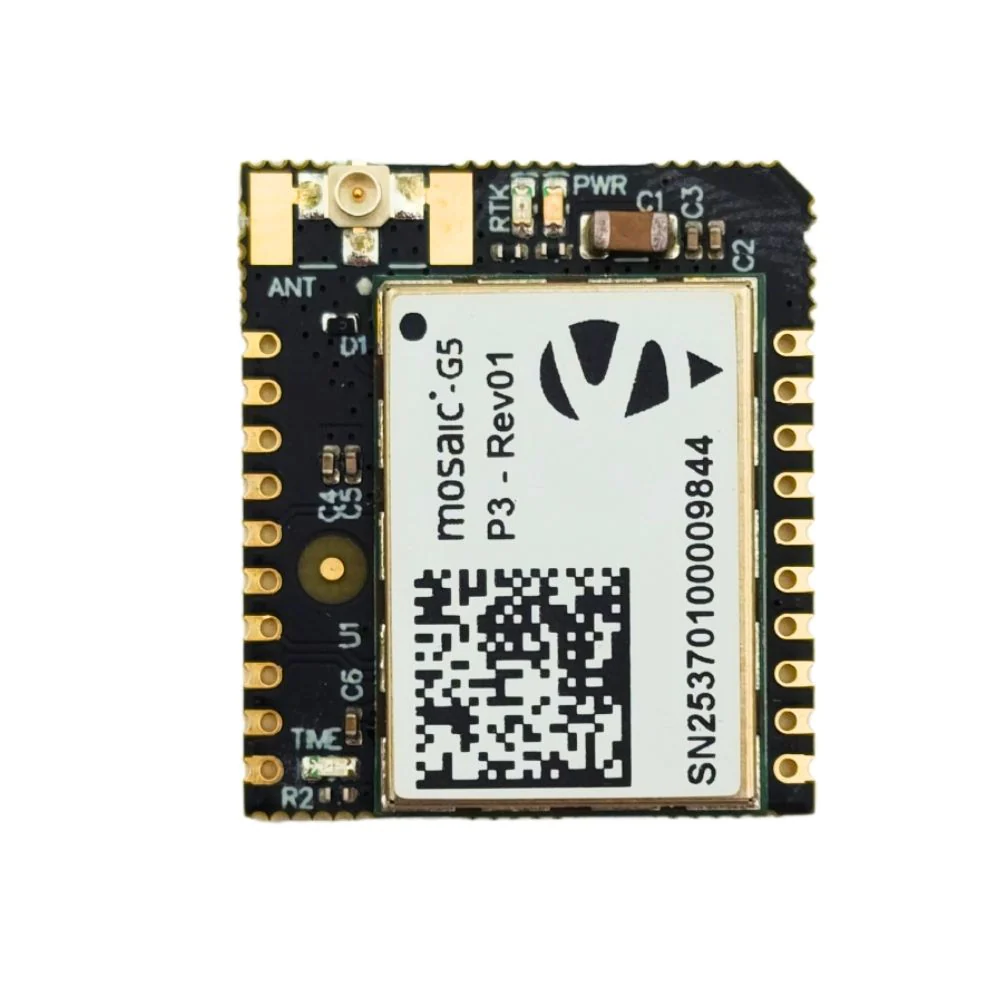

mosaic-G5 Mic RTK GNSS receiver
Mic Form Factor features:
- Allows you to reuse expensive LGA component, if something goes wrong
- Takes care of all the RF complexity so you only need to connect antenna directly to the module
- This form factor is available in a variety of modules
mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver.
mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.
APME+ a posteriori multipath estimator for code and phase multipath mitigation.
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring

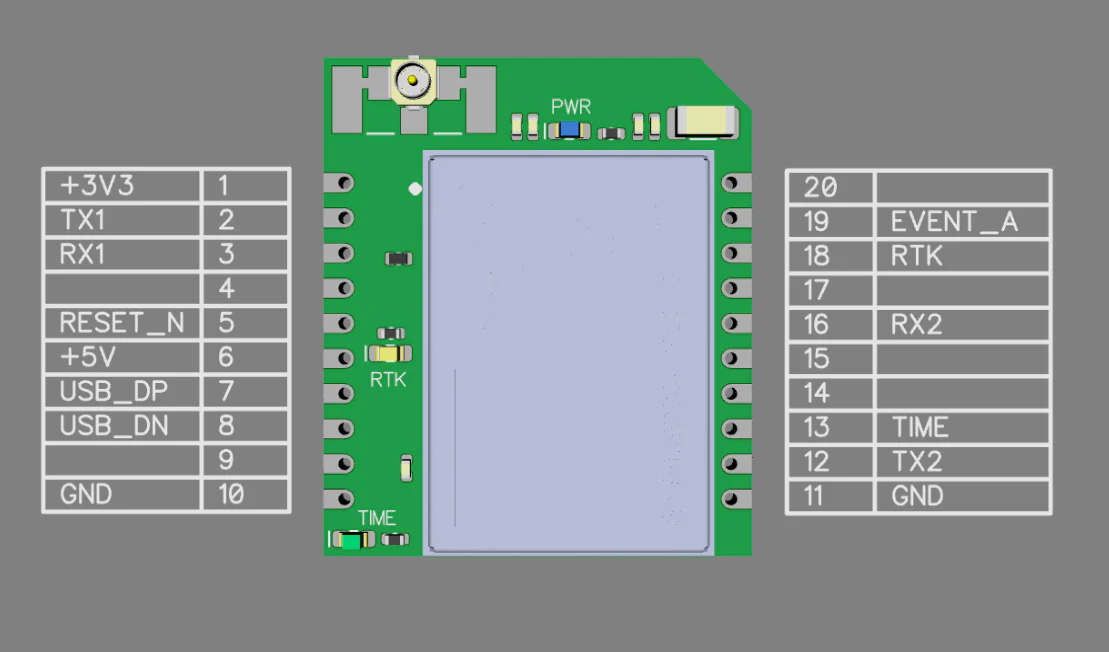

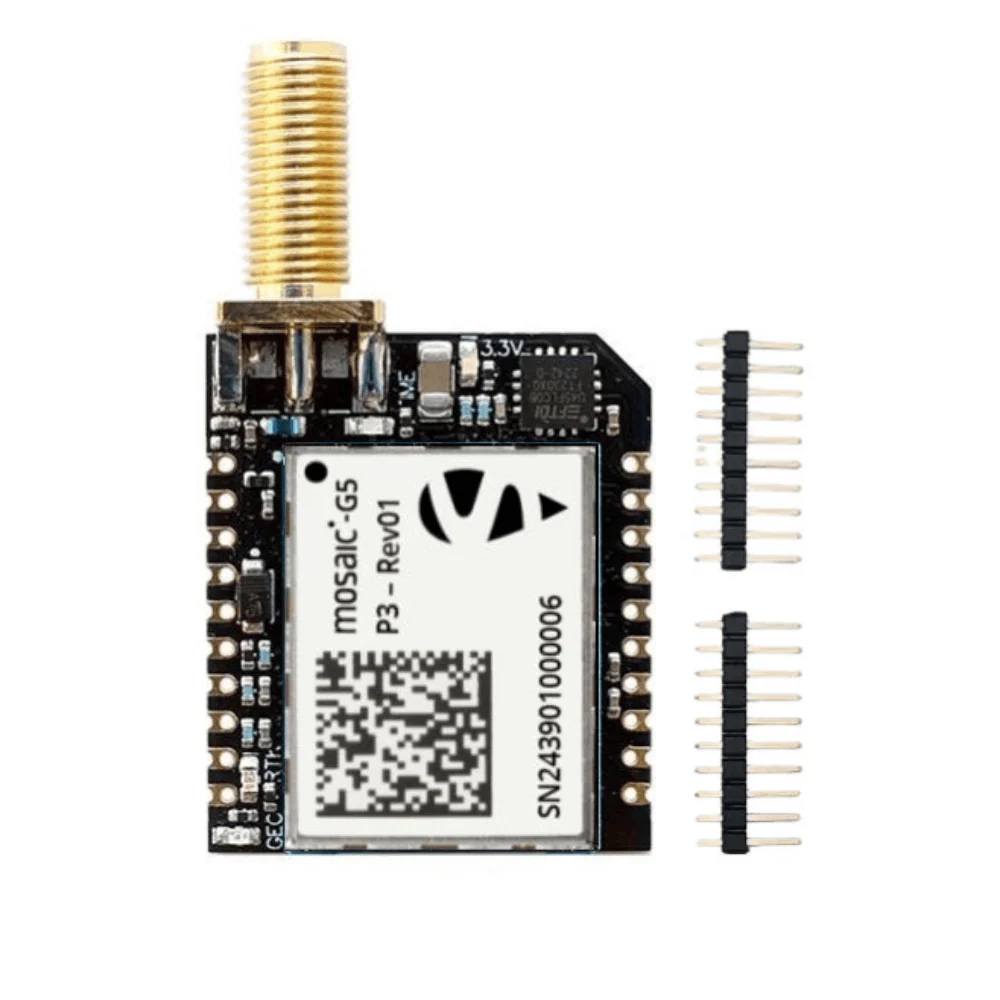

- Antenna input with SMA or IPEX connector
- USB and 2 UART ((3.3V)
- EVENTA external event input (3.3V)
- RESET Input
- Time pulse LED: Green, Power LED: Purple, RTK LED (GPIO1): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 24.5x33.5 mm
- Weight: 10 gr.

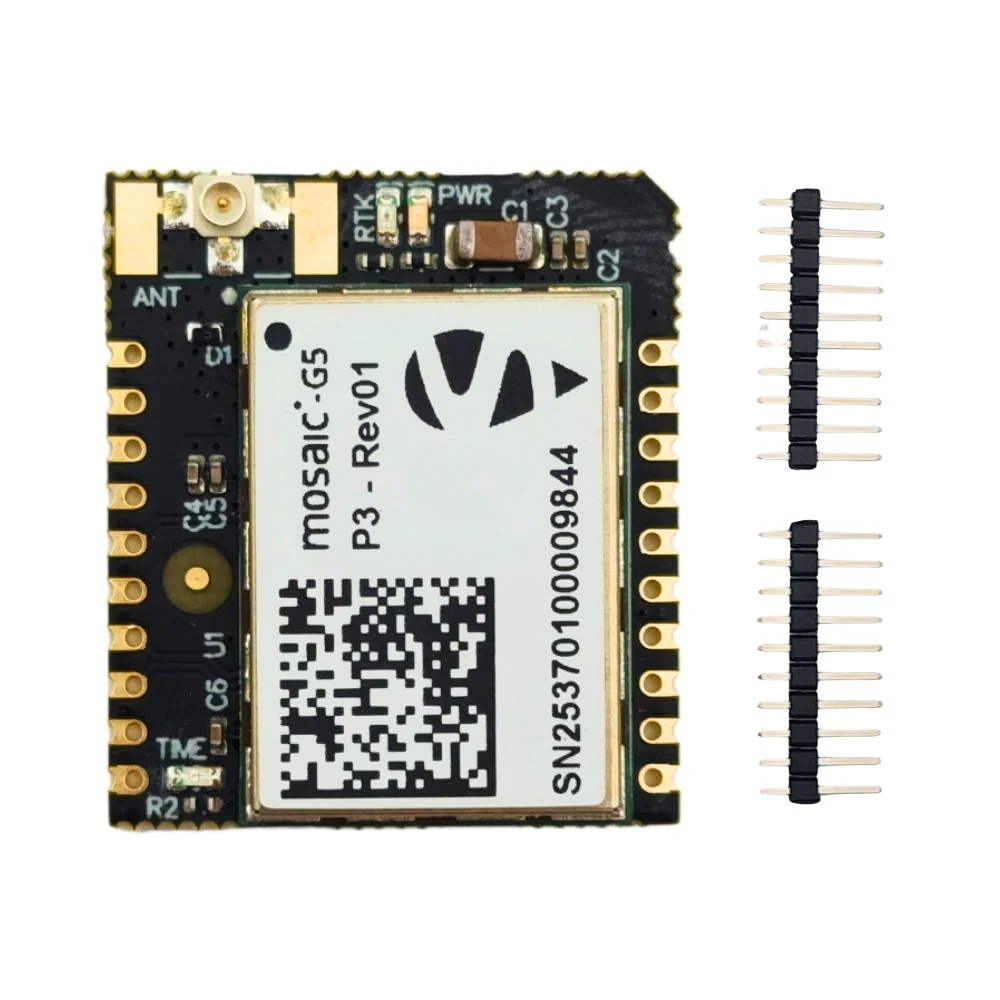

- Fully assembled and ready to use
- Compatible with AgOpenGPS TeensyModules
WARNING: RX and EVENT input shall not be driven while input supply not present.
WARNING: This module requires antennas with 3.0 V power supply, such as ELT0243
