ZED-F9T 5G Network Synchronization RTK InCase PIN timing module SMA
ZED-F9T high accuracy timing EVAL module USB, I2C, UART, SPI with SMA antenna connectors. Designed for 5G Network Synchronization. Two time pulse out.
The ZED-F9T timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. ZED-F9T is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale. By significantly reducing the time error of the primary source of cellular network synchronization, the ZED-F9T will help operators maximize the performance of their networks and so optimize the return on their investment in 5G communications.
The timing module’s multi-band capability reduces the timing error under clear skies to less than 5 ns without the need for an external GNSS correction service. To further improve accuracy locally, the ZED-F9T features differential timing modes that exchange correction data with other neighboring GNSS timing receivers via a communication network. Multi-band access to all four satellite constellations strengthens the receiver’s capability for delivering more reliable performance. ZED-F9T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity. The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation.
- On-board low noise 3.3V voltage regulator
- USB, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface, Two time pulse out
- SMA antenna connectors
- u-center u-blox Evaluation Software
- Extensive visualization and evaluation features
- Time pulses 1 and 2: Green LED, GEO: Orange LED, RTK: Red LED
- Backup supercapacitor
- Dimensions: 35x23 mm
- Weight: 9 gr.
- Fully assembled and ready to use

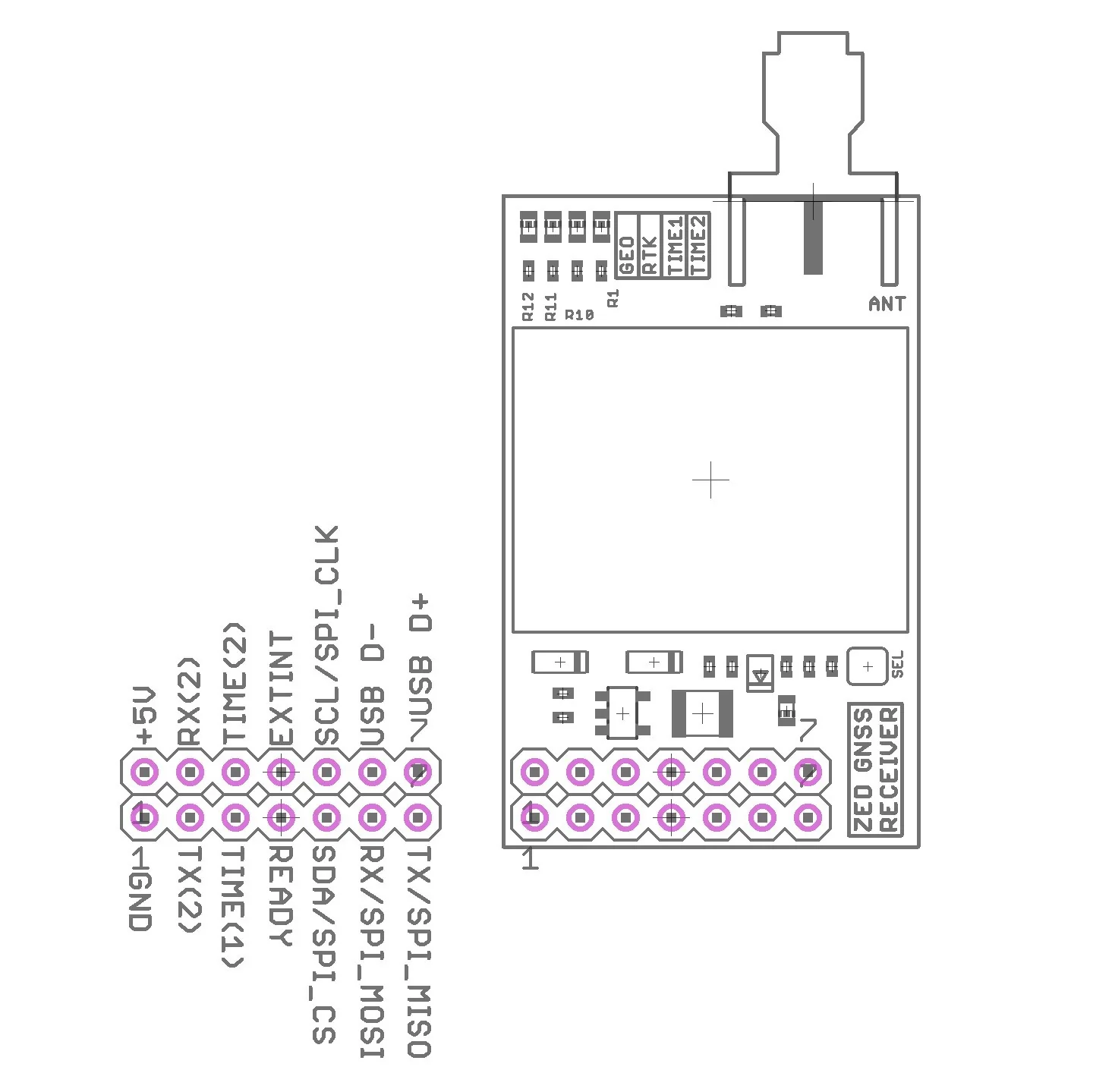

- 14 pin holes connector
Original: $223.72
-65%$223.72
$78.30More Images
