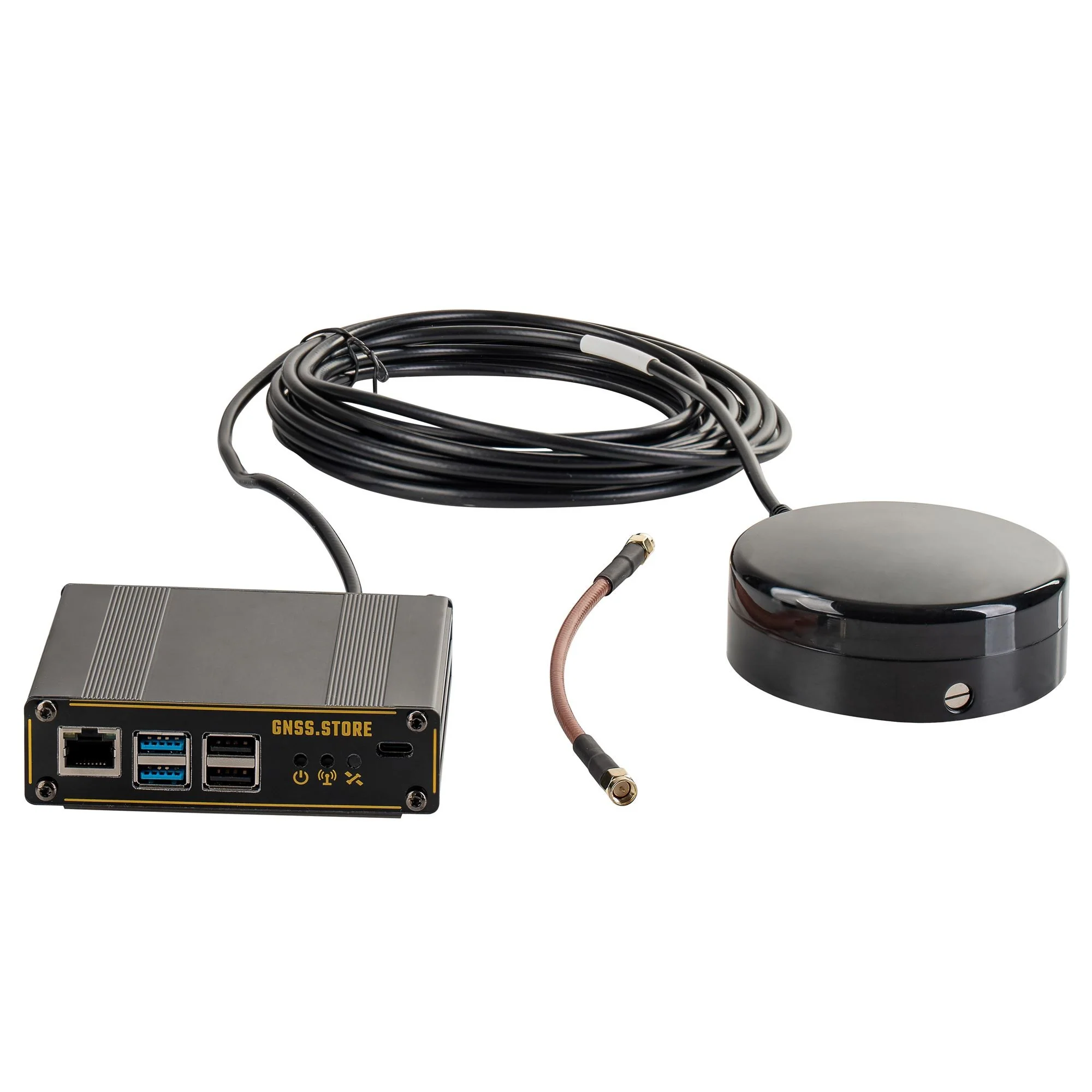

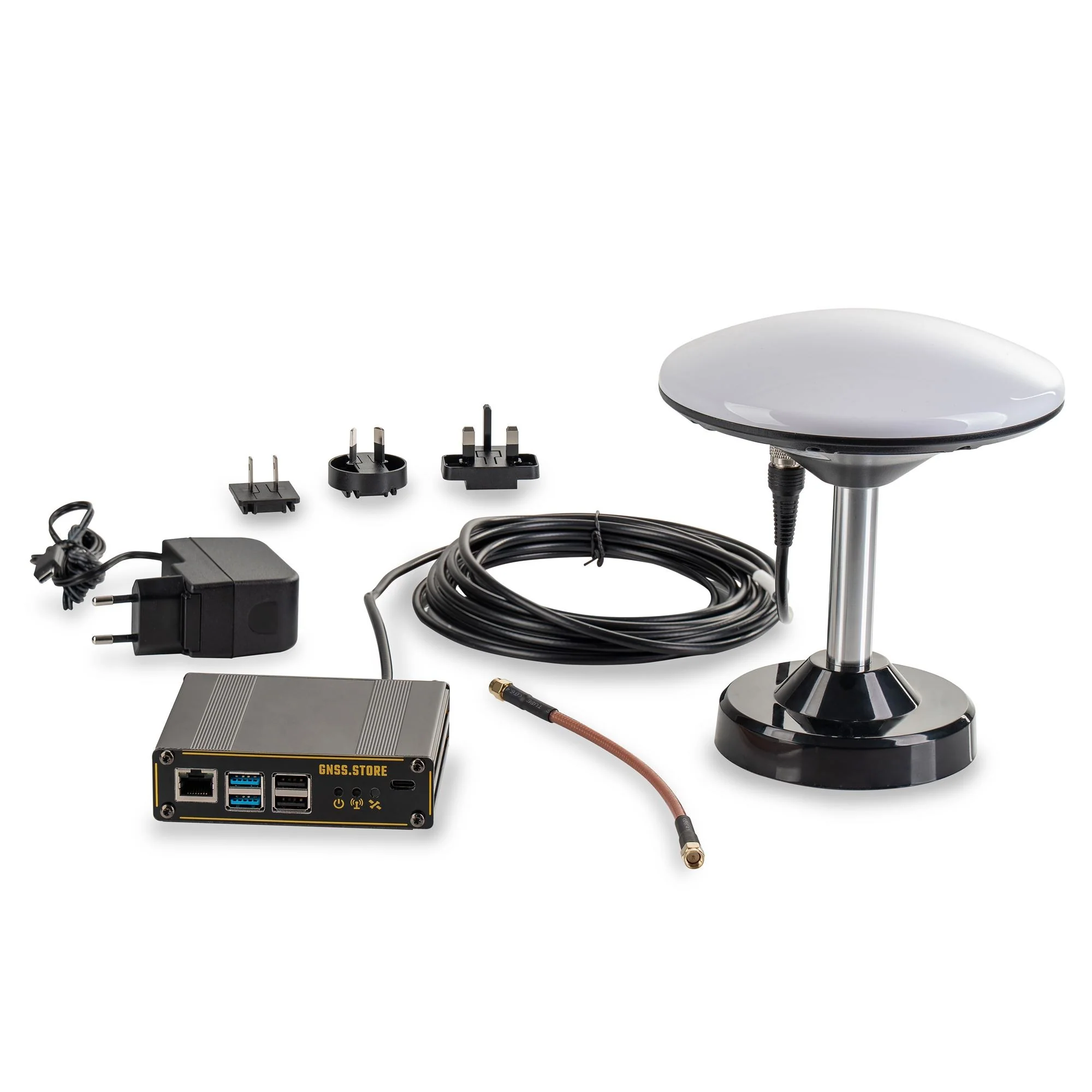

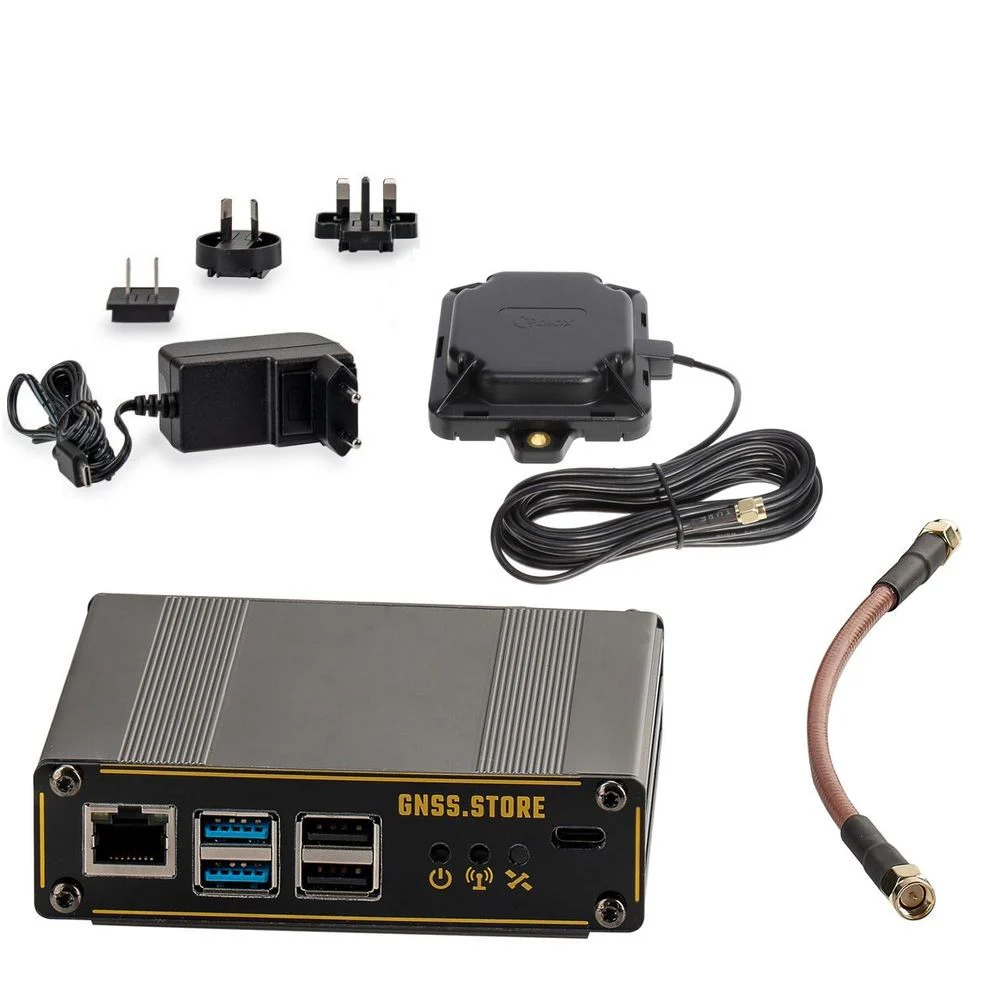

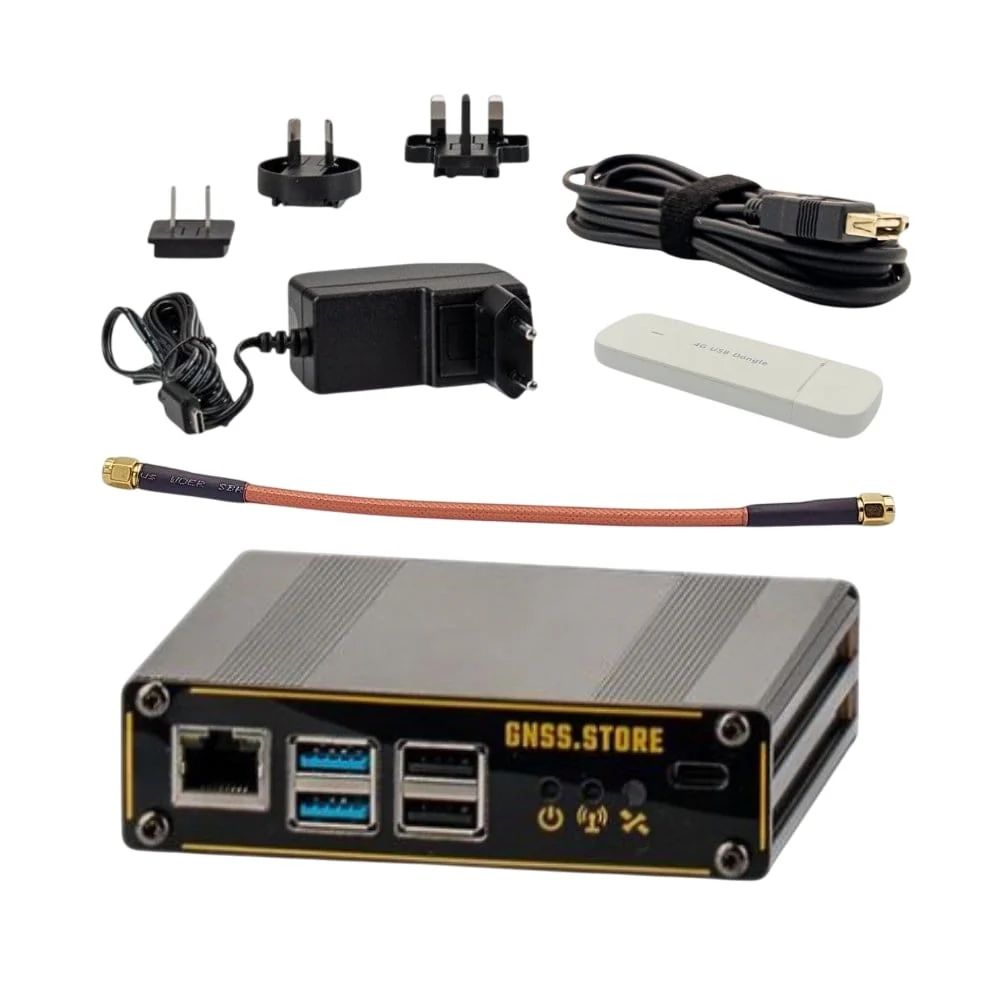

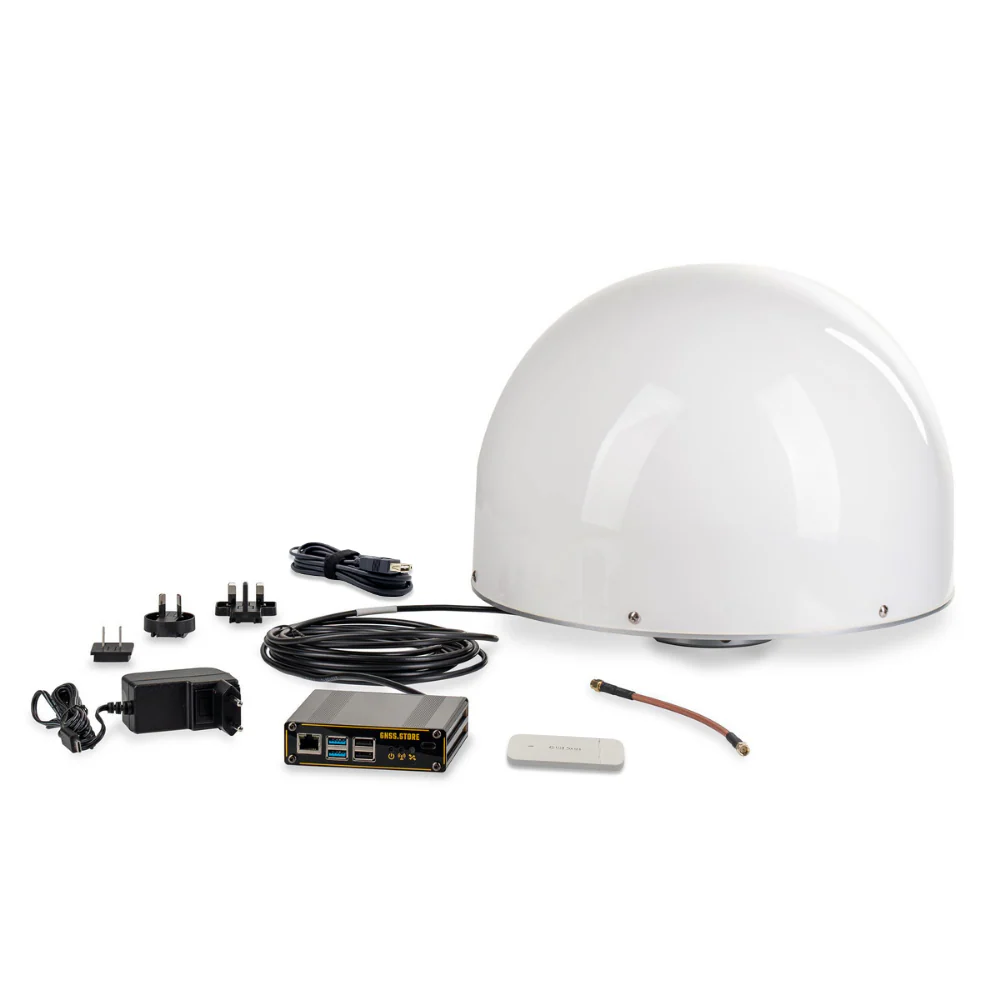

UM980 GNSS RTK CORS Fanless Station

UM980 All-constellation Multi-frequency High Precision RTK GNSS receiver

UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.

---

UM980 GNSS RTK CORS Station features:

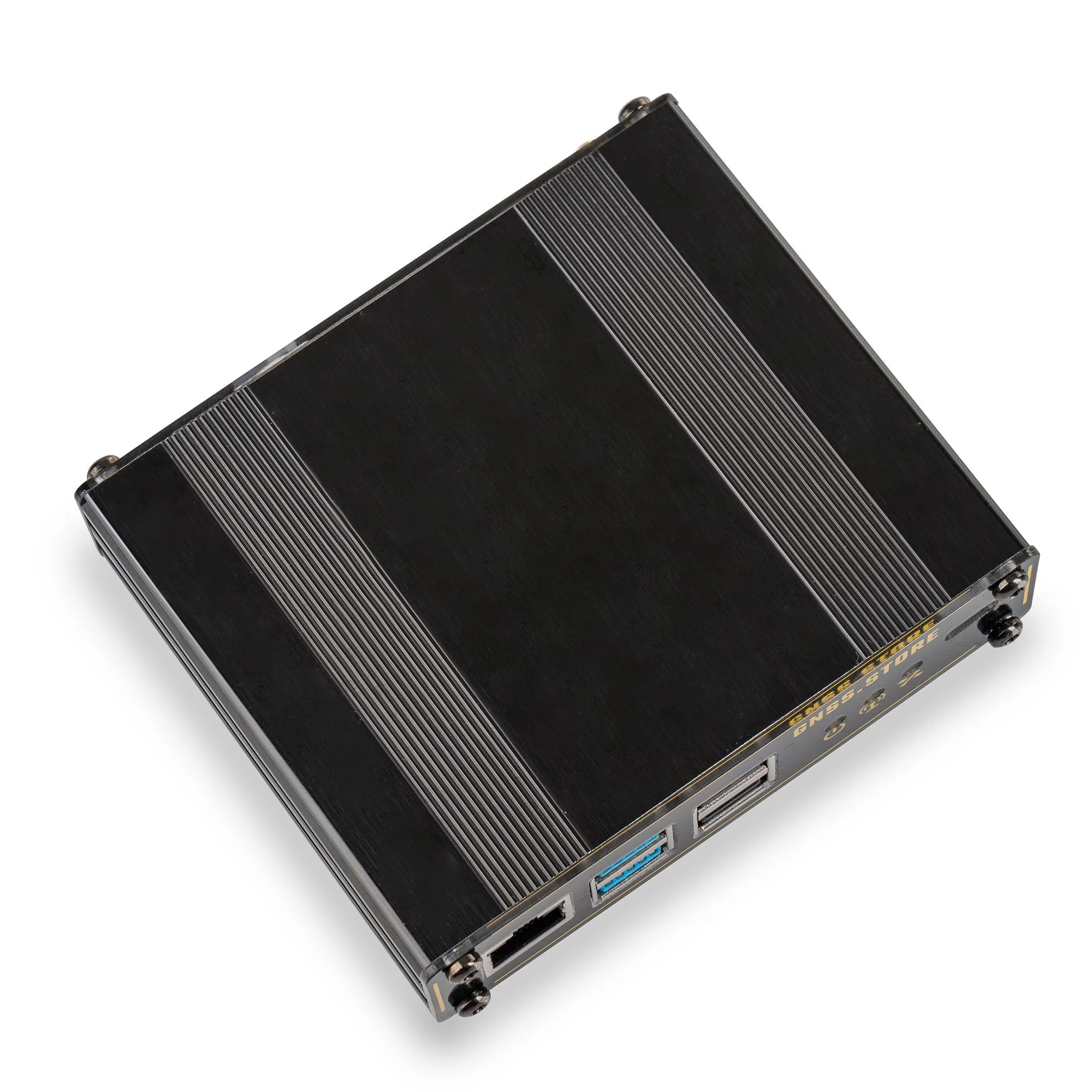

• Fanless setup, passive cooling
• Build-in RF splitter for direct connection in multi-receiver setup
• Raspberry-PI RPI4-MODBP-2GB
• BCM2711 SOC, ARM  [email protected]
• WiFi 2.4 and 5GHz 802.11 b/g/n/ac, Bluetooth 5.0 BLE
• ELT_RtkBase full-featured software
• ELT_RTKBase User Guide
• microSD card 32GB with pre-installed software and documentation

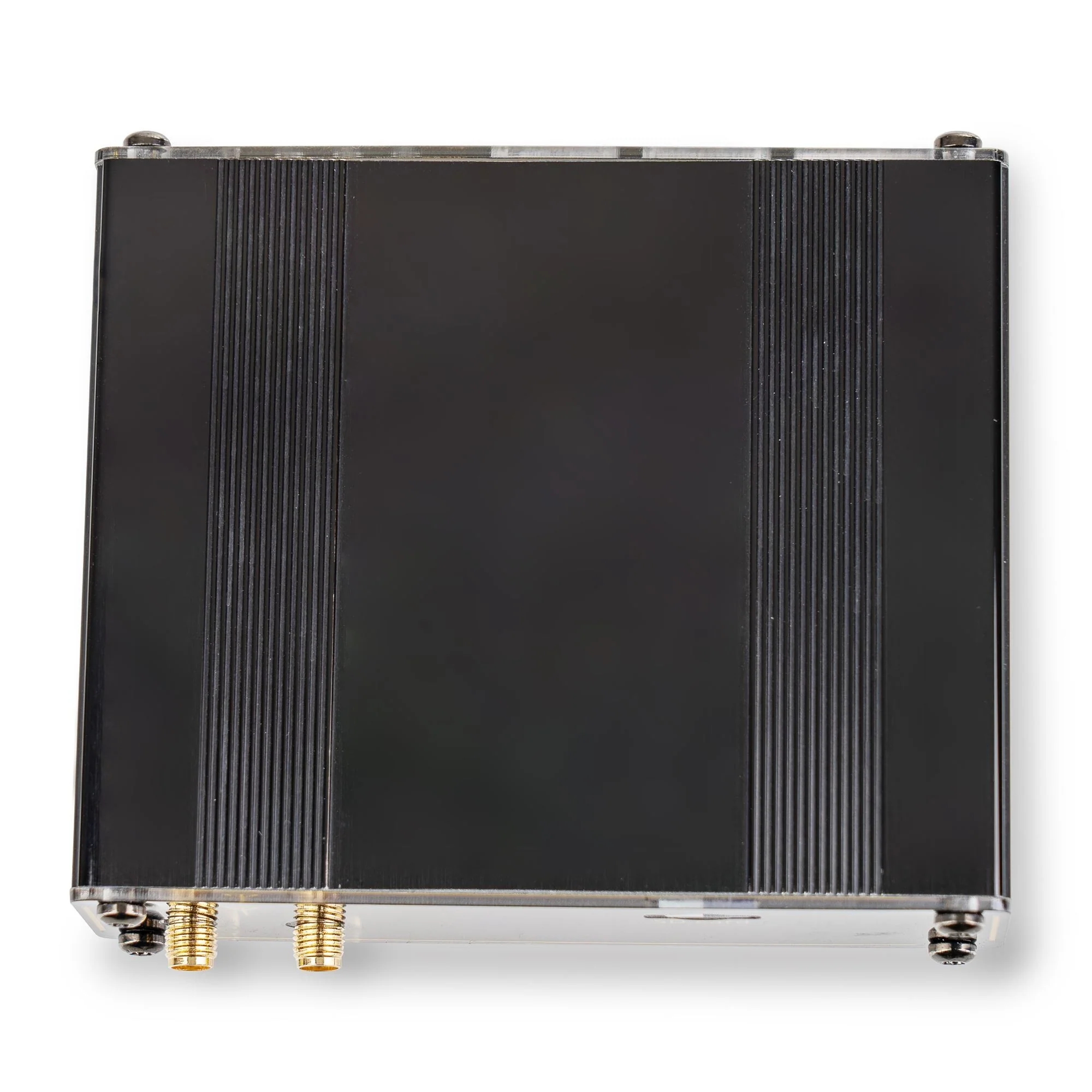

• GNSS antenna input with SMA connector
• Gigabit Ethernet port with optional PoE support
• PoE is compliant with IEEE 802.3af-2003
• Time pulse LED, Ethernet LED
• Backup supercapacitor
• Dimensions 110x95x30 mm
• Weight: 245/265 gr
• Fully assembled and ready to use
• Extensive mounting options - check accessories in the related products list
