M20 RTK GNSS Raspberry PI HAT
M20 All-constellation Multi-frequency High Precision RTK GNSS receiver.
M20 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M20 is well suited for autonomous driving, lane-level navigation, drones and robots.

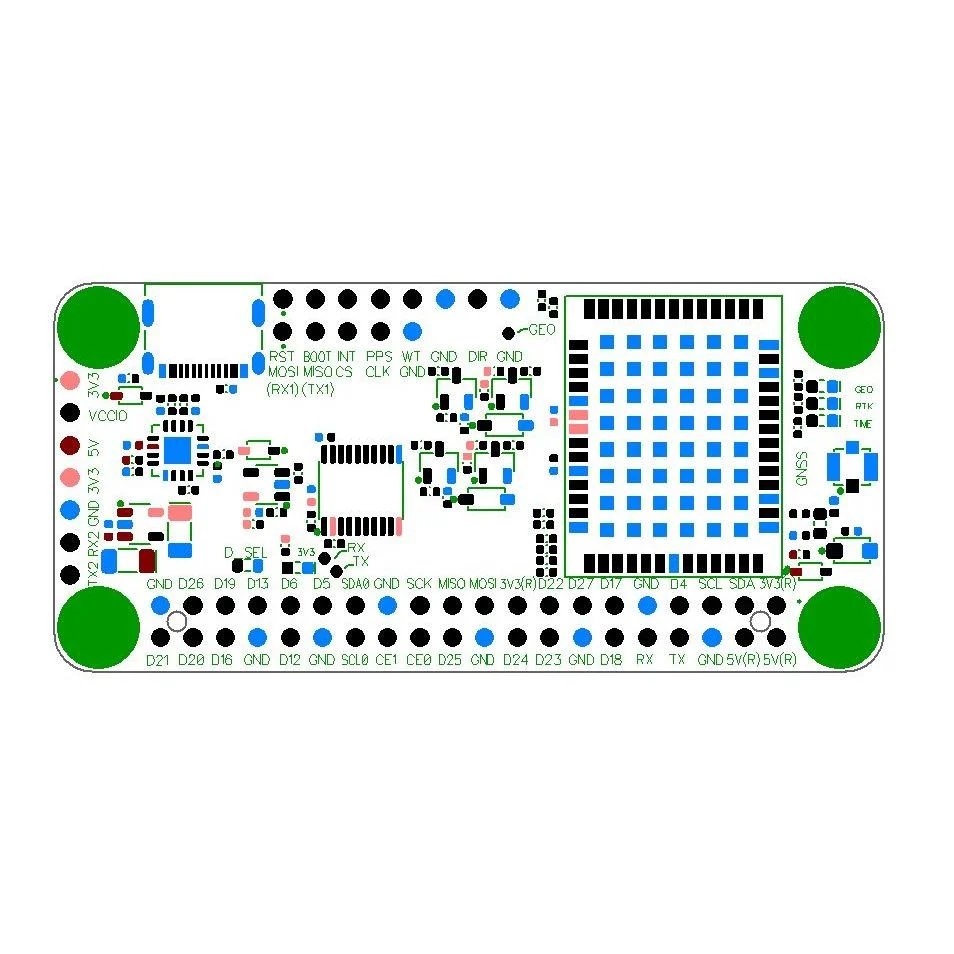

- Raspberry PI 40 pin extension header, supports all Raspberry PI compatible boards and Jetson Nano
- USB C connector
- Antenna input with IPEX connector
- On board low noise 3.3 V voltage regulator

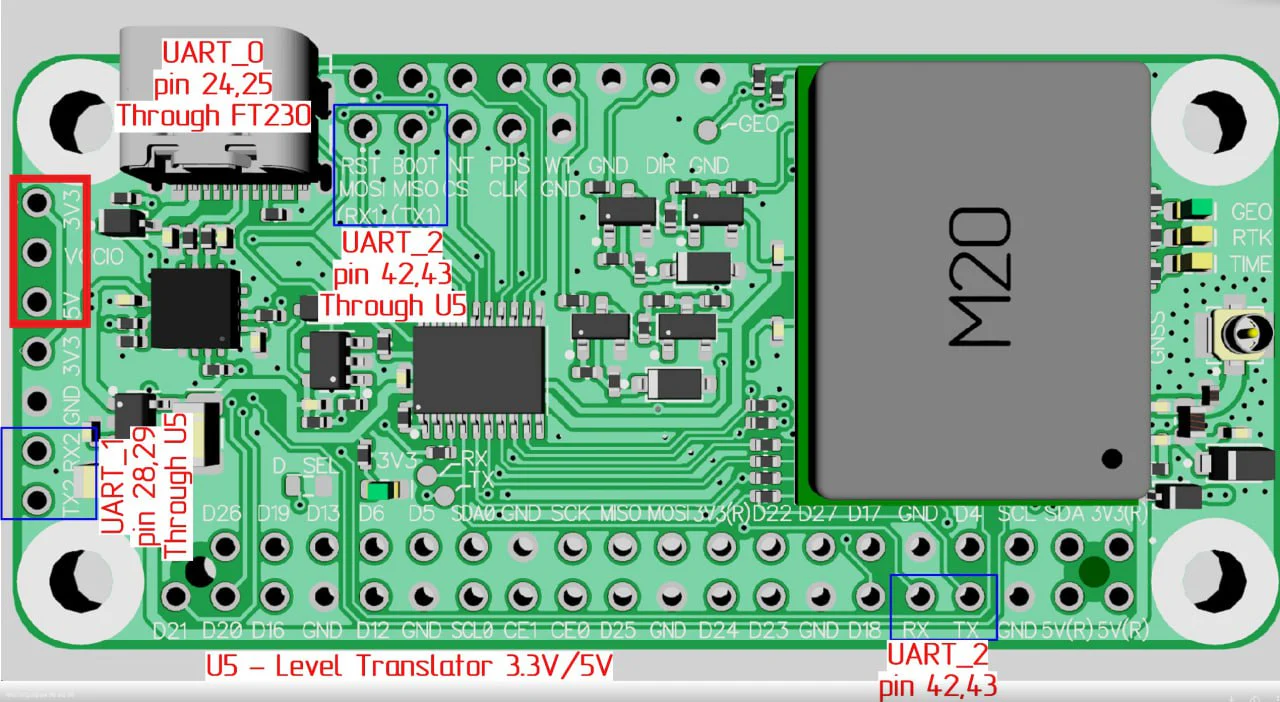

- On board voltage level translators for 5V compatibility
- Time pulse LED, Power LED, RTK LED and GEO LED
- ELT_RtkBase full-featured software
- BY_Connect Evaluation Software
- Extensive visualization and evaluation features
- Backup supercapacitor
- Supports onboard battery holder for ML1220 rechargeable cell for long backup applications

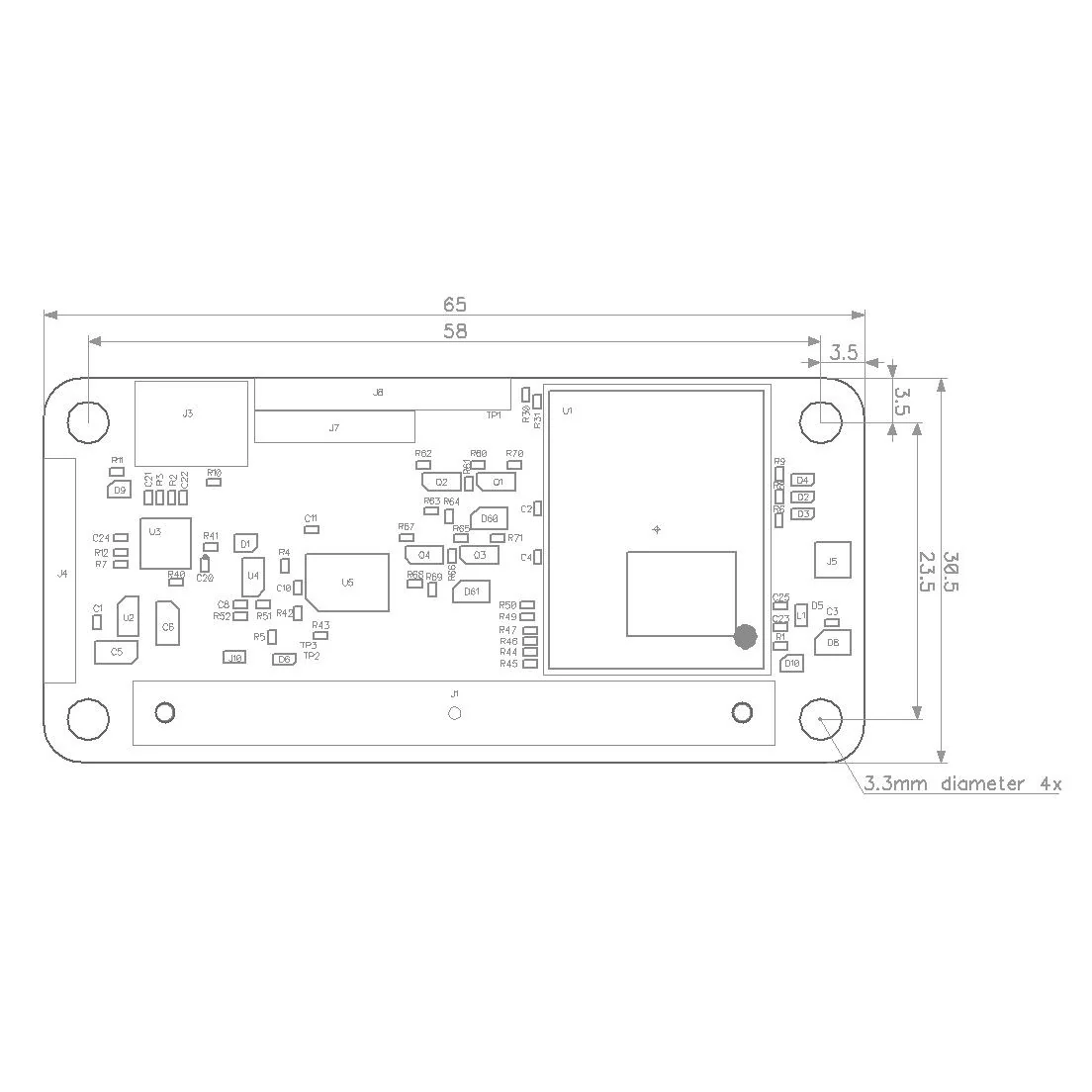

- Dimensions 65x30.5x10 mm
- Fully assembled and ready to use
- ELT_RTKBase User Guide
Original: $164.85
-65%$164.85
$57.70More Images
M20 RTK GNSS Raspberry PI HAT
M20 All-constellation Multi-frequency High Precision RTK GNSS receiver.
M20 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M20 is well suited for autonomous driving, lane-level navigation, drones and robots.
- Raspberry PI 40 pin extension header, supports all Raspberry PI compatible boards and Jetson Nano
- USB C connector
- Antenna input with IPEX connector
- On board low noise 3.3 V voltage regulator
- On board voltage level translators for 5V compatibility
- Time pulse LED, Power LED, RTK LED and GEO LED
- ELT_RtkBase full-featured software
- BY_Connect Evaluation Software
- Extensive visualization and evaluation features
- Backup supercapacitor
- Supports onboard battery holder for ML1220 rechargeable cell for long backup applications
- Dimensions 65x30.5x10 mm
- Fully assembled and ready to use
- ELT_RTKBase User Guide
