AllBand+ Choke Ring 3D High Performance Multiband RTK GNSS Antenna with TNC connector

AllBand+ Choke Ring full band Antenna description:

This is four star full frequency reference station antenna with high gain and high precision. Multi systems compatibility and high reliability. Antenna can be used as a geodetic surveying, mapping and for precision agriculture.

---

Signal Received:

• GPS L1/L2/L5
• GLONASS G1/G2/G3
• GALILEO E1/E5a/E5b/E6
• BDS B1I/B2I/B3I/B1C/B2a/B2b
• SBAS L1/L5
• QZSS L1/L2/L5/L6
• IRNSS I5
• L-band

RF Specifications:

• LNA Gain: 50 dB
• Noise Figure: 1.5 dB typical, 2 dB max
• Axial Ratio: ≤ 3 dB
• Phase center error: +/- 2mm
• Voltage: 3.3 to 12 V
• Current: 50 mA max
• Flatness in Band: +/-2dB
• Differential delay: +/- 2nS

Choke Ring full ban Antenna features:

• Concurrent GNSS reception on GPS, GLONASS, Galileo and Beidou
• Rugged IP67 rating with TNC-K mount for surveying pole

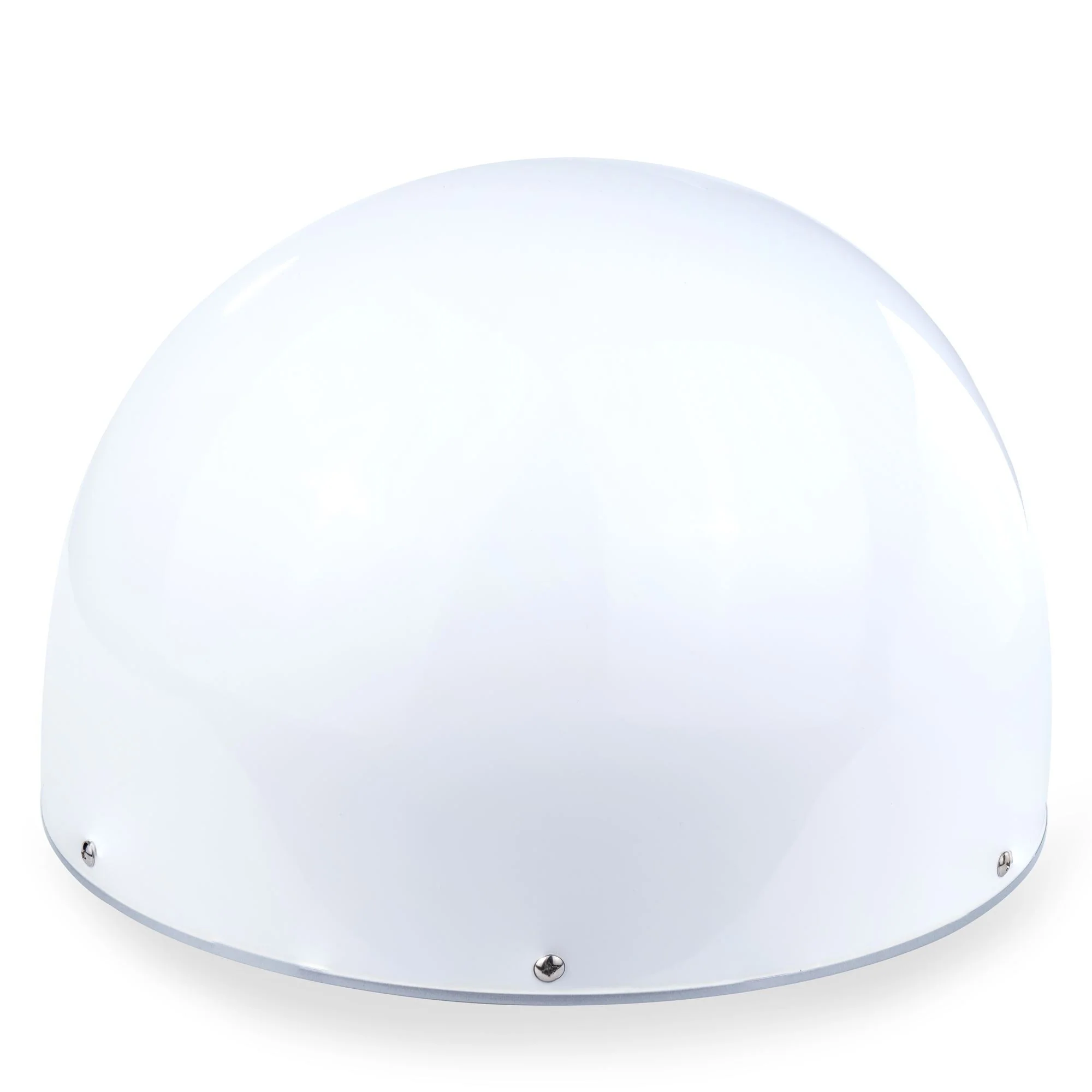

• Dome form factor
• GIS, RTK and other high accuracy GNSS applications
• Low power consumption
• Low phase center variation over azimuth and elevation and among different samples

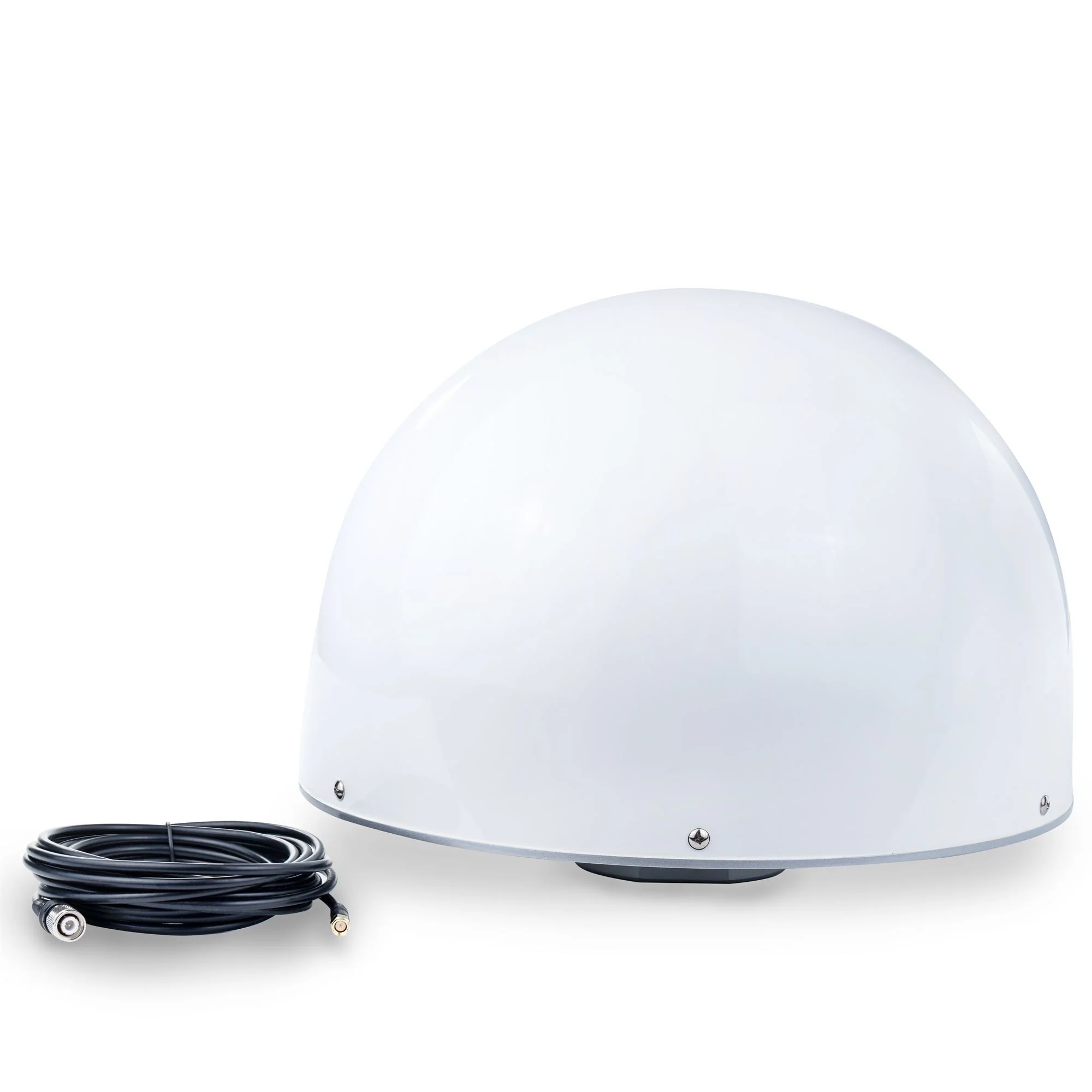

• TNC-K to SMA 5m cable included
• Dimension: Ø379.50*296.5 mm
• Weight: 9.6 kg
• Mounting: 5/8" threaded survey pin mount
