AllBand+ GPS, GLONASS, BDS, Galileo 28dB D50xH40 RTK antenna with IPEX cable

AllBand+ GPS, GLONASS, BDS, Galileo 28dB D50xH40 RTK antenna with IPEX cable

Ideal for precision positioning and RTK surveying systems, this antenna provides excellent circular polarized signal reception, great multi-path and out-of-band signal rejection. The Antenna features a precision tuned, four star full frequency helical antenna. The signals from the helical antenna combined in a hybrid combiner, amplified in a wide-band Low Noise Amplifier, then band-split for narrow filtering in each band and further amplified prior to recombination at the output. The Antenna offers excellent axial ratio and a tightly grouped phase center variation. The antenna features an integrated cable with an IPEX connector. It can be mounted using double-sided adhesive tape or a magnetic plate, both included in the package.

---

Signal Received:

• GPS L1/L2/L5
• GLONASS G1/G2
• GALILEO E1/E5a/E5b/E6
• BDS B1I/B2I/B3I/B1C/B2a/B2b
• SBAS L1/L5
• QZSS L1/L2/L5/L6
• IRNSS I5
• L-band

Antenna features:

• Low Noise Amplifier (LNA)
• Axial ratio: ≤ 3 dB typ.
• Tight Phase Center Variation (PCV)
• High Gain: 28 dB typ.
• Low current: 15 mA typ.
• Invariant performance from: +3 to 16VDC
• Integrated cable with an IPEX connector

Typical Applications Include:

• Autonomous Driving
• Precision Positioning for Robotics
• Precision Agriculture
• Inventory Management & Container tracking
• Telematics & Asset Tracking
• Timing Accuracy Synchronization
• UAV

Physical Characteristics:

• Protection class: IP64
• Operating Temperature Range: -40 +85 ℃
• Dimensions: Ø50x46 mm
• Weight: 25 gr.
• Cable length: 25 сm
• RoHS & Reach Compliant

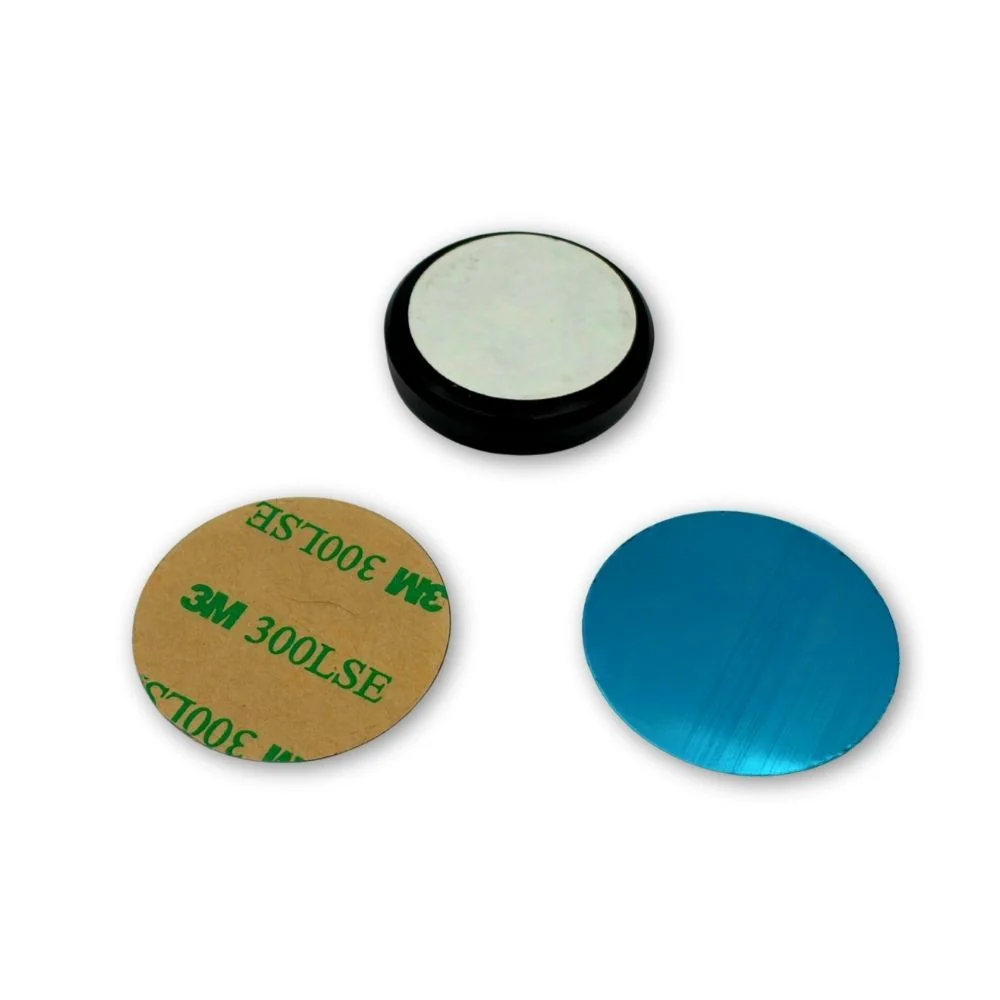

• Mounting: double-sided adhesive tape or a magnetic plate

This MultiBand antenna is the latest addition to an ongoing product road map of high precision antennas. For RTK applications when used on the base and/or the rover, the MultiBand antenna can achieve genuine cm-level accuracy.
